Model:FFSP-220M
Material:Monocrystalline silicon
Maximum Power(Pmax): 200W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.12A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):11.36A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:28x21x0.9(in)/70x50x2.4(cm)
Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)
Net Weight:5.3kg
Package Weight:6.3kg
Package Size:80x60x7cm

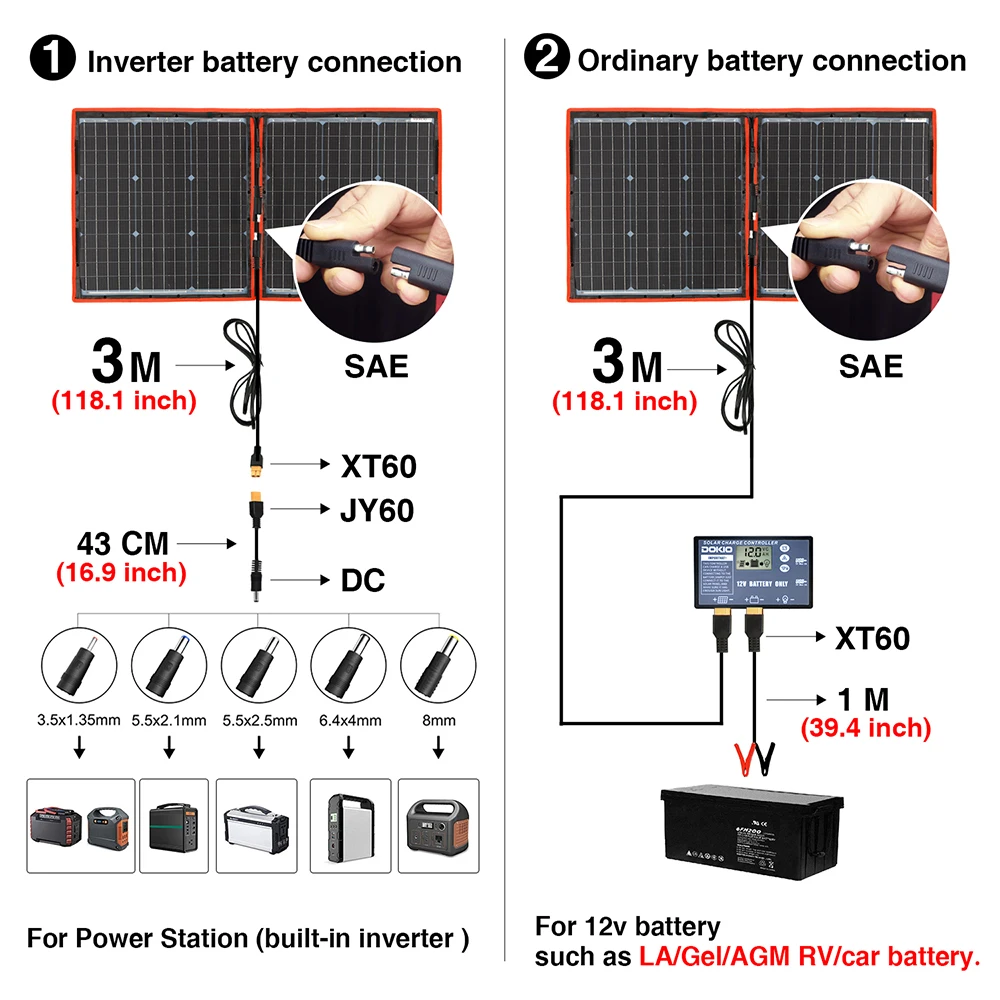

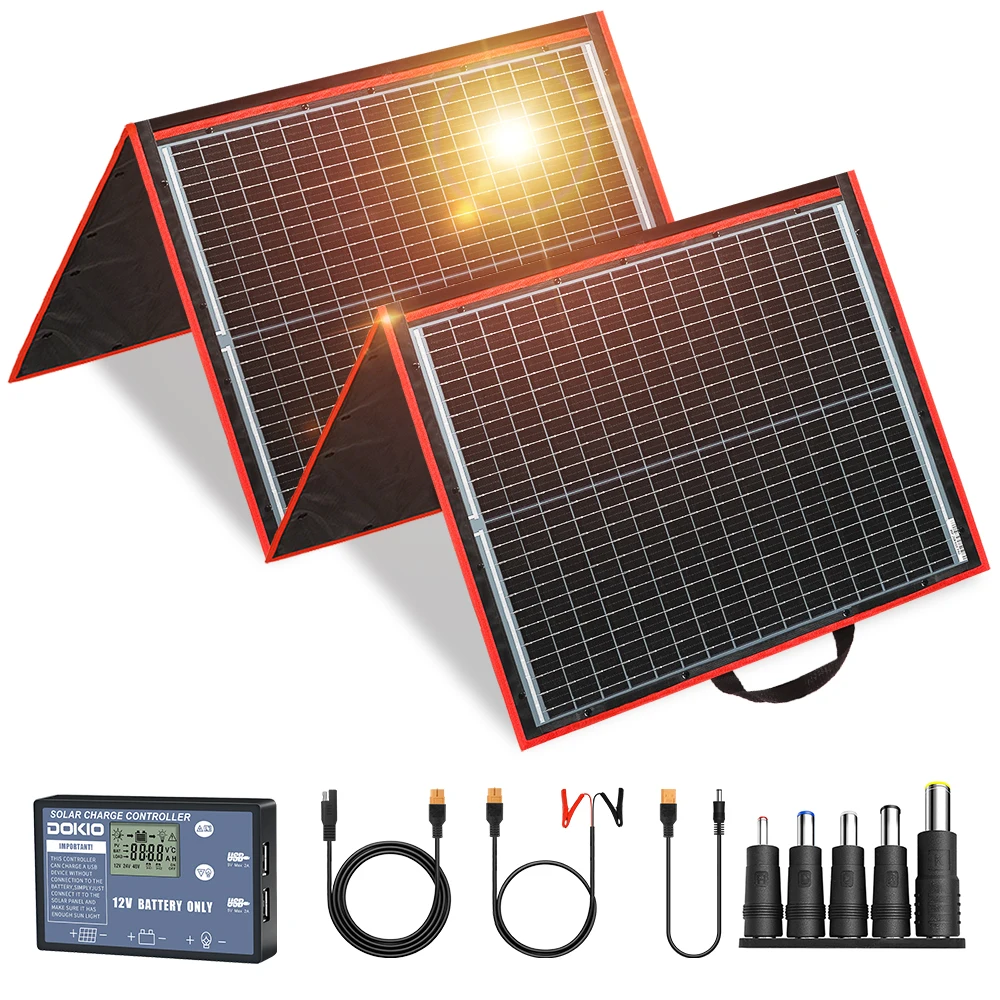

Package List:
1*200W Flexible Foldble Solar Panel
1*3M wire,1*20A 12Vcontroller,
A total of 4M long cable. With alligator clips.
Cable thickness: 2×1.5 mm²
Â
Model:FFSP-300M
Material:Monocrystalline silicon
Maximum Power(Pmax): 300W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):16.67A
Open-Circuit Voltage (Voc): 20.50V
Short-Circuit Current (Isc):16.92A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:49*95*2.8 cm
Expansion Dimension:196*95*0.6 cm/77.2*37*0.2 inch
Net Weight:6.9kg
Package Weight:8.1kg
Package Size:105*50.5*4 cm

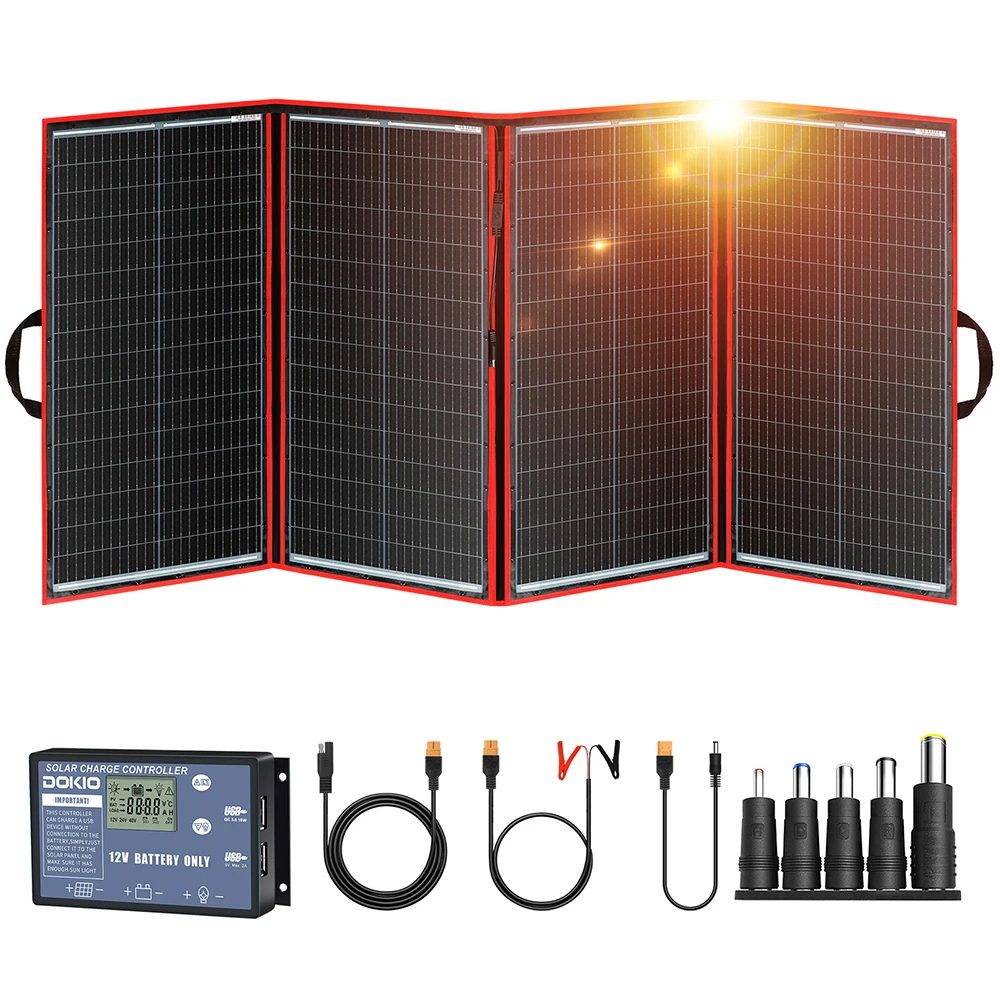

Package List:
1*300W Flexible Foldble Panel
A total of 4M long cable. With alligator clips，
1*20A 12Vcontroller
1*English User Manual
Â
(The above data is based on the laboratory standard test environment)
Â
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Â
Standard Test Conditions:
Â
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
